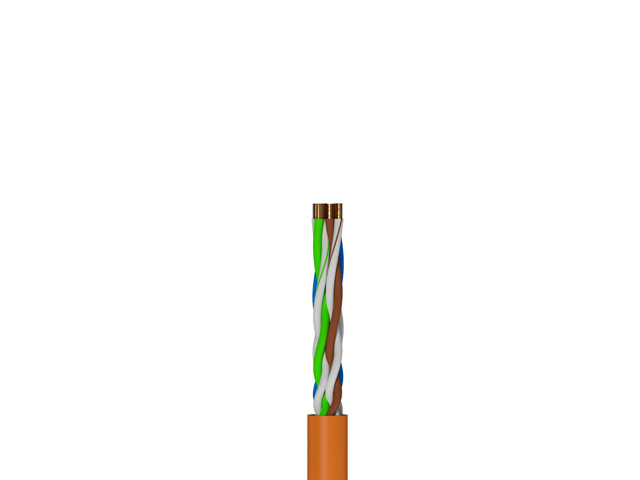

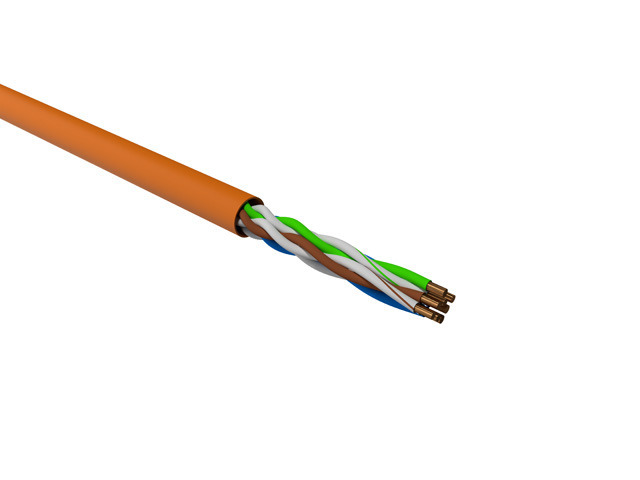

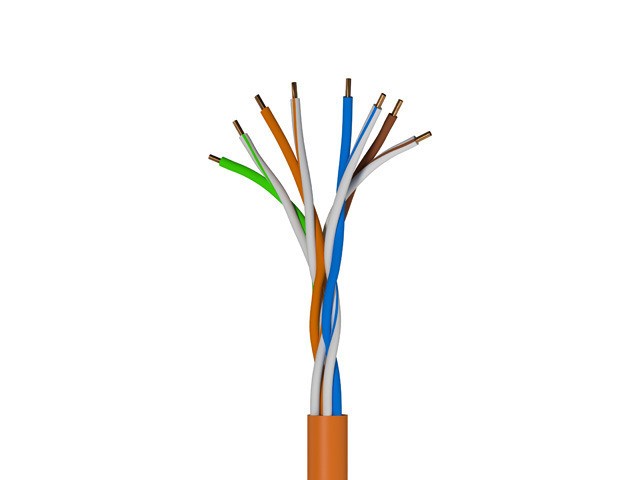

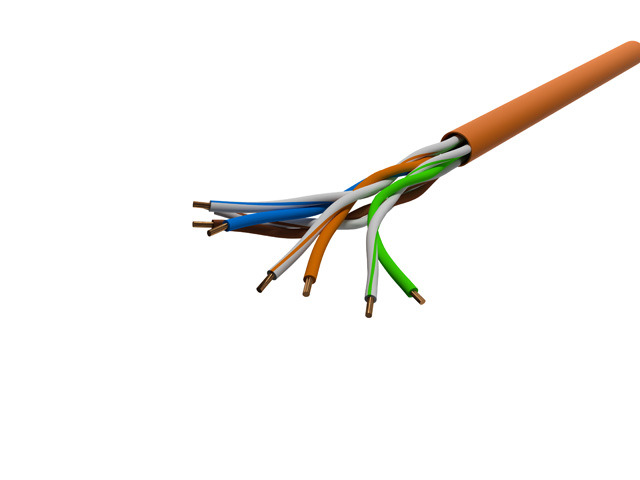

LAN КАБЕЛЬ CAT.6 UTP 500M SOLID CU B2CA ORANGE FLUKE PASSED

Description
Data transmission cable, halogen-free with increased fire safety requirements. Suitable for work in frequency band up to 350 MHz.

Telecommunication parameters:
• Category: 6
• Screened: U/UTP (nonscreened)
• Core made of:
type: wire
material: copper
• Outer sheath: special LSOH compound
• Conductor diameter:
0,54±0,015mm
AWG 23
• Diameter of insulated core: 0,985±0,05mm
• Outer diameter of the cable: 6,1 mm
• Operation up to 350 MHz
• Reaction to fire: B2ca-s1a, d1, a1

Technical parameters:
• Thermal range:
operating temperature: -30°C do +70°C
installation temperature: -10°C do +50°C
• Bending radius:
during operation: 6xO
during installation: 8xO
• DC loop resistance at 20°C (max): 165?/km
• Insulation resistance (min): 5G?xkm
• Resistance unbalance within a pair: ?2%
• Mutual capacitance at 1kHz: 50±5nF/km
• Capacitance unbalance pair to ground at 1kHz (max): 1600pF/km
• Nominal voltage: 150V
• Test voltage at 1min:
AC 50Hz: 700V
DC: 1000V
• Characteristic impedance at 100MHz: 100±5?
• NVP value: 67%
• Return loss dB (min):
f = 4÷10MHz: 20+5xlog (f)10
f = 10÷20MHz: 25
f = 20÷350MHz: 25-7xlog (f/20)

Packaging:
• Package: spool
• Lenght: 500m
• Colour: orange RAL 2003 (Other colours possible on client request)
• Printed length counter at every meter of cable
